Medical Box Computers
ACL OR-PC® Box

High performance IT hardware for medical and hygienically critical areas. Compact series of “Made in Germany” products from ACL company, world's leading manufacturer of medical IT solutions, include medical computers, monitors and consoles. All products are certified as class I. medical device and can be complemented by a broad range of accessories and options for customized configurations and functionalities according to individual customer needs.

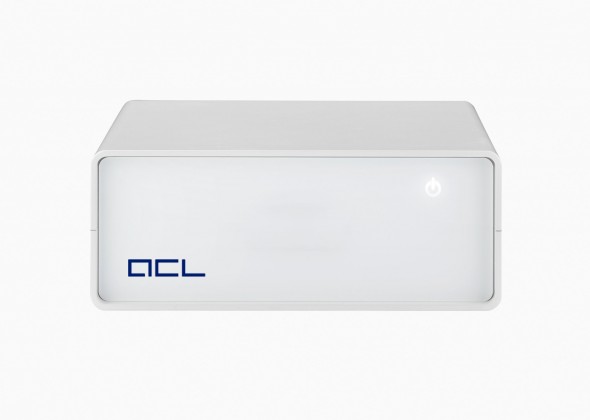

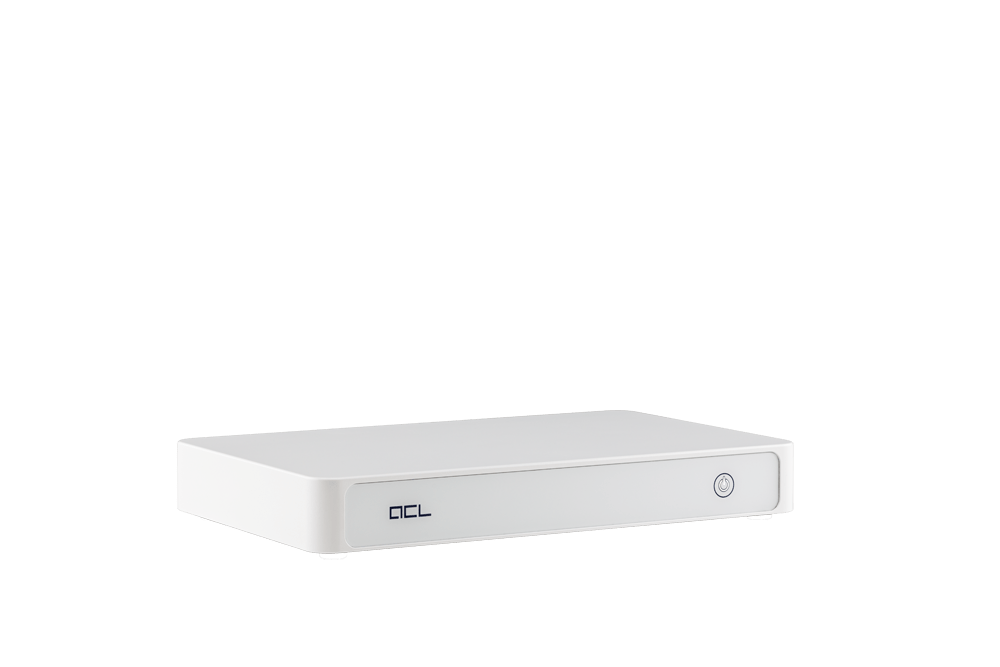

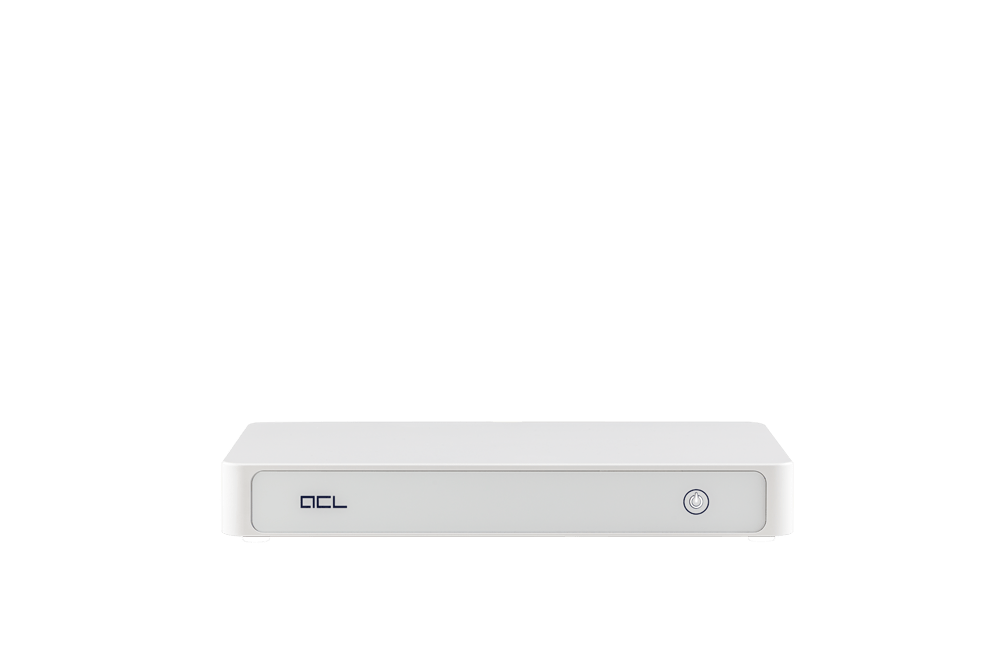

The OR-PC® Box is the most compact version of the series and is supplied without an integrated display. It is a price sensitive solution for connection of external monitors. The compact OR-PC® nevertheless offers full computing power in a minimal space and provides an extremely high degree of individualization and flexibility.

The OR-PC® Box is installed completely fanless in a milled aluminium housing and is adapted to the high demands of modern operating theatres. It is the ideal workplace for medical applications and video capture solutions.

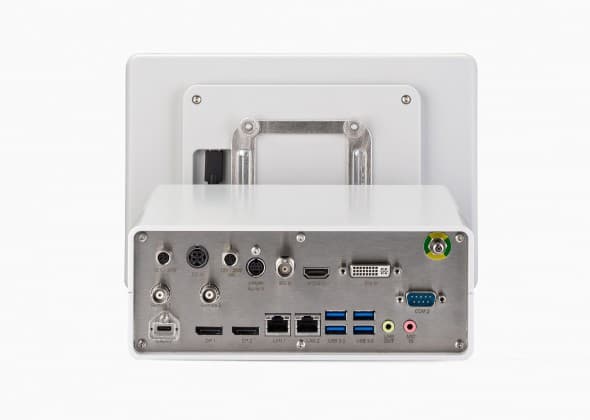

The unit can be optionally equipped with a 10” multi-touch screen and enables integration of additional cards, e.g. video capture card. All signals as well as the power supply are realised via a USB-C port and only one cable.

Key Benefits

Maximum performance through processors and the most advanced chipset technology
Long operation life due to optimised heat dissipation and use of mechanically robust housing and durable industrial HW components
All systems are designed for 24/7 continuous operation
Maintenance-free and service-friendly concept of highly reliable product
High planning and investment security through the use of industrial components available in the long term
Noiseless operation without rotating parts and with unique cooling system
Easy to disinfect sealed housing with no openings for interfaces, completely waterproof and dustproof
Modular system with a broad range of options and upgrade possibilities
Customization – special on-demand configuration, interfaces, individual design or branding

Fields of Application

Operating theatres
Exam/treatment rooms
Intensive care unit / Intermediate care (ITS/IMC/ICU)
Intervention areas
Inlet and outlet rooms
Recovery room
Mobile ward round visits
Bedside terminals
Areas with high hygienic requirements
Clean rooms
Pharmacies
Veterinary medicine
Digital video and endoscopy systems

The OR-PC® serves as input terminal or bedside/office workstation for:

CIS (Clinical Information Systems)
PDMS (Patient Data Management Systems)
Anaesthesia Documentation Systems
RIS (Radiology Information Systems)
PACS (Picture Archiving and Communication System)
Videomanagement (video signal routing within hospital network, input/output switching)
Capturing and processing of surgical and other data from various medical devices (recording, streaming, storage)

Technical Specification

Available monitor display sizes: 15“, 19", 21“, 24“, 27“, 32“, 42“, 55"
Resolution Full HD or 4K (according to model)
11th generation Intel® Core™ i5 / i7 or Celeron® processors
RAM: up to 64 GB
Hard drive: up to 2 TB mSATA/m.2 SSD
Milled all-aluminium housing
Passive cooling fanless system with excellent thermal conductivity and natural heat release
All-round protective glass front with anti-reflection and anti-fingerprint coating
Easy cable management due to integrated power supply unit
Low weight due to compact design
Tool-free unit mounting via VESA interface
Energy-saving night mode due to backlight shut-down
Easy deactivation at the touch of a button for disinfection mode
Modern display technologies with truecolour reproduction and all-round viewing angle in all directions

Also available as Thin Client solution

Accessories

PCAP multi-touch
Display bonding L-OCA for extremely high image quality
RFID reader
Barcode scanner
Wi-Fi and Bluetooth
Interface decoupling 4 kV (RJ-45, RS-232, USB)
LWL card
Integration of frame grabber cards for video capturing
Audio equipment
Individual customer layout
Individual glass coatings (anti-reflective, anti-bacterial, anti-glare, anti-fingerprint)
Windows operation system
Hygienical keyboard with mouse or touchpad, keyboard shelf
Mounting solutions (deskstand, wallstation incl. keyboard)
Extension of warranty up to 5 years
