Mobile Medical Solutions
with ACL OR-PC®

High performance IT hardware for medical and hygienically critical areas. Compact series of “Made in Germany” products from ACL company, world's leading manufacturer of medical IT solutions, include medical computers, monitors and consoles. All products are certified as class I. medical device and can be complemented by a broad range of accessories and options for customized configurations and functionalities according to individual customer needs.

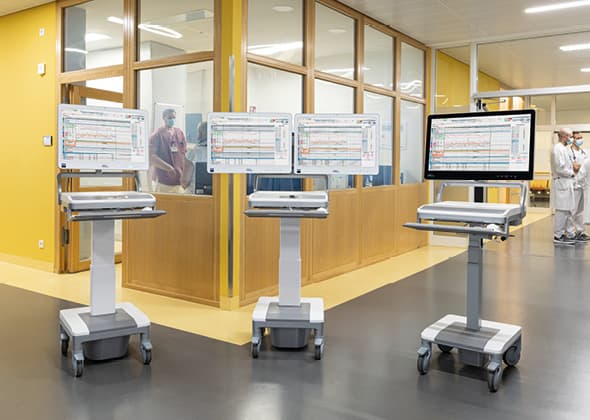

The mobile trolley solution combines the latest ward trolley technologies with OR-PC® or OR-PC® 24 with Hot Swap battery. The integrated battery solution in the trolley or OR-PC® provides maximum flexibility.

The batteries are charged either via the main adapter or a separate charger and a digital display provides information on the current charge status at all times. The batteries can be replaced at any time during the operation without necessity to switch off the PC. In addition, the working height can be adjusted at the touch of a button, thus allowing optimum user-friendliness and ergonomics.

With the mobile cart solution, the nursing staff are optimally supported and relieved in their daily work. Access to patient records from the hospital information system, RIS, PACS, medication systems, drug administration and logistics is possible at any moment.

The mobile trolleys meet the highest ergonomic requirements and also offer numerous optional functions such as electric height adjustment or electric mobility support.

Key Benefits

Maximum flexibility of mobile cart solution
Quick and easy management for the nursing staff
The integrated battery solutions as well as built-in components enable the continuous 24/7 self powered operation.

Fields of Application

Mobile ward round visits
Direct patient environment
Nursing trolley
Recovery room for documentation
Intensive care unit / Intermediate care (ITS/IMC/ICU)

Technical Specification

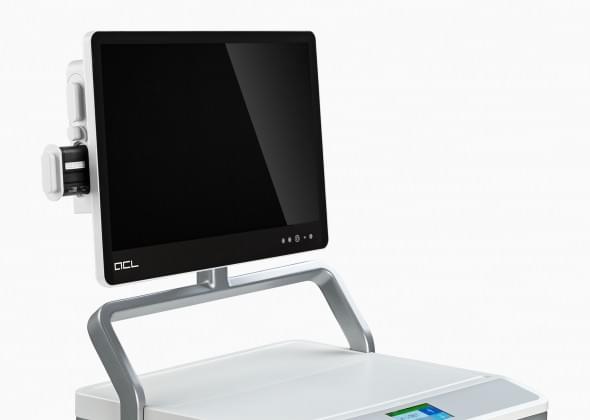

PC module: OR-PC® or OR-PC® 24 Hot Swap Battery
Available monitor display sizes: 15”, 19”, 21”, 24”, 27”, 32”, 42” (only for OR-PC®)
11th generation Intel® Core™ i5 / i7 or Celeron® processors
RAM: up to 64 GB
Hard drive: up to 1 TB mSATA/m.2 SSD
Milled all-aluminium housing
Easy cable management due to integrated power supply unit
Integrated WLAN for maximum mobility
Rechargeable battery system integrated either in the cart or in the PC module.
Charging is carried out by connecting the PC to an electrical outlet in the device or in an external charging station
Electric height adjustment or electric mobility support supplied on demand

Accessories

PCAP multi-touch
Display bonding L-OCA for extremely high image quality
RFID reader
Barcode scanner
Wi-Fi and Bluetooth
Interface decoupling 4 kV (RJ-45, RS-232, USB)
LWL card
Integration of frame grabber cards for video capturing
Audio equipment
Individual customer layout
Individual glass coatings (anti-reflective, anti-bacterial, anti-glare, anti-fingerprint)
Windows operation system
Hygienical keyboard with mouse or touchpad, keyboard shelf
Mounting solutions (deskstand, wallstation incl. keyboard)
Extension of warranty up to 5 years
