Medical Tablets
ACL OR-Pad®

High performance IT hardware for medical and hygienically critical areas. Compact series of “Made in Germany” products from ACL company, world's leading manufacturer of medical IT solutions, include medical computers, monitors and consoles. All products are certified as class I. medical device and can be complemented by a broad range of accessories and options for customized configurations and functionalities according to individual customer needs.

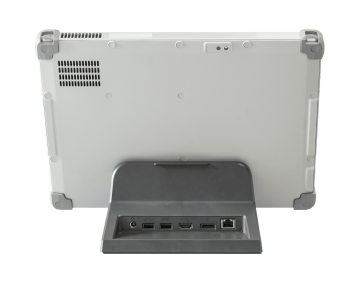

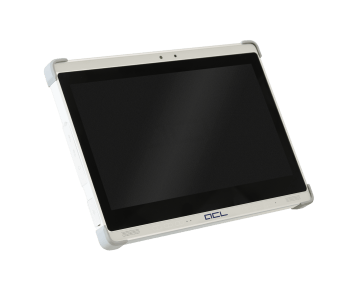

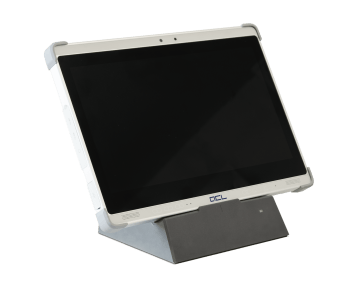

Medical tablets from ACL company are a reliable companion in daily work of hospital staff and nurses. The robust and powerful OR-Pad® is wherever you are and offers you access to your digital content at any time thanks to excellent connectivity. The medical tablet combines functionality and performance in a compact, durable and lightweight aluminium housing. Certified to IEC 60601-1/60601-1-2 and with IP65 protection rating, the OR-Pad® resists drops, shocks and liquids. As usual for ACL devices, all commercially available cleaning agents and disinfectants can be applied without any harmful effects on the tablet surface. Can be used as standalone solution, mounted on a special holder or connected to a medical cart.

Key benefits

High mobility and immediate data access (quick and easy management of patient workflow for nursing staff)
Extremely robust aluminium housing and IP65 protection allow for long operation life and maximum protection, resisting drops, shocks and liquids. It is also protected against heat, cold and submersion
High quality touch screen with brilliant colors. Thanks to the capacitive 10-point PCAP multi-touch system, it can also be operated with wet hands or gloves. The anti-fingerprint and anti-glare screen coatings based on Corning Gorilla Glass reduce interference on the display surface
High performance ensured by 11th generation ULV processors and blazingly fast M.2 SSDs, the OR-Pad® medical tablet is every bit as good as a stationary computer
High connectivity of fast and stable wireless transfer using WiFi 6 and Bluetooth 5
Maintenance-free and service-friendly concept of highly reliable product
Easy to disinfect, completely waterproof and dustproof

Fields of Application

Point-of-Care (directly at the patient)
Inpatient wards
Recovery rooms
Intensive care units / Intermediate care
Operating theatres
Exam/treatment rooms
Intervention areas
Inlet and outlet rooms
Bedside terminals
Areas with high hygienic requirements
Clean rooms
Pharmacy / Veterinary medicine
Telemedicine

Technical Specification

13.3“ IPS display with Full HD resolution and 10-point PCAP multi-touch system
Conformity with norms IEC 60601-1/60601-1-2, IEC 60529, MIL-STD-810G
Processor: Intel® Core™ i5, 11th generation
RAM: 8 GB DDR4
Hard drive: 256 GB SSD
Housing: compact and lightweight aluminium housing with rubberized corners
Fanless passive cooling with excellent thermal conductivity and natural heat release
Corning Gorilla Glass protective glass front with anti-fingerprint coating (AF) and anti-glare coating (AG)
Weight: 1.8 kg
Battery: 10.8 V / 4550 mAh / 49.14 Wh
Front keypad: power button, volume up / down, 3 programmable buttons (optional)
IP 65 protection
Connectivity: WiFi 6, Bluetooth 5

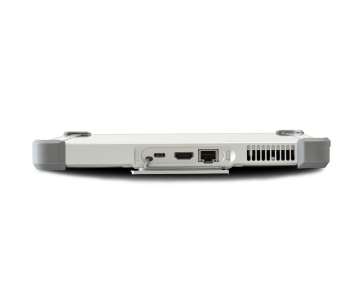

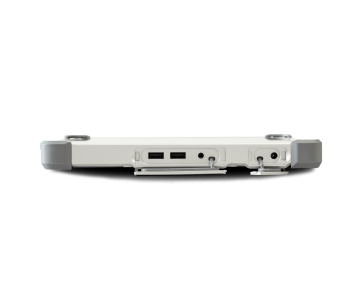

Interfaces: 1x HDMI, charging socket, 2x USB 3.0 (Type-A), 1x USB 3.1 (Type-C)
Audio: 3.5 mm jack input/output, 2x stereo speakers (2 W)
Front camera: 5 Mpx (fixed focal length)
Rear camera: 8 Mpx (autofocus) and LED flash
